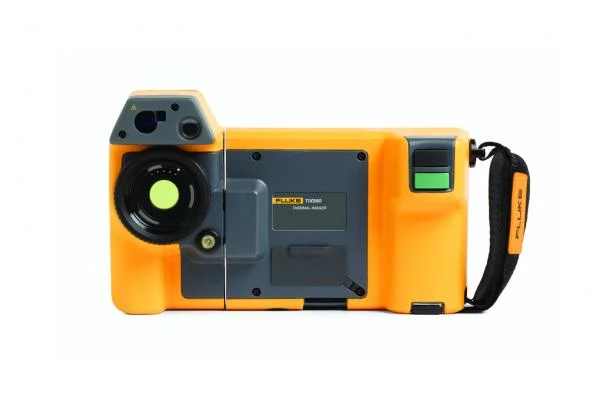

Fluke TiX580 Infrared Camera
$ 10999
$ 26299
Fluke TiX580 Infrared Camera – 640x480 SuperResolution Thermal Imager (1280x960)
✅ 5.7” Touchscreen | ✅ 240° Rotating Lens | ✅ Radiometric Video | ✅ Export Controlled
Experience unmatched clarity, precision, and flexibility with the Fluke TiX580, one of the most advanced industrial infrared cameras on the market. Built for professionals working in R&D, power distribution, manufacturing, and field inspections — this tool adapts to your toughest challenges.
🧰 Key Features:
🖥️ Massive 5.7" LCD Touchscreen
150% more viewing area than standard 3.5” screens, for easier inspection & image control🔄 240° Rotating Lens System
Capture images in tight, hard-to-reach places with ease🧊 640 x 480 Infrared Resolution
On-camera SuperResolution delivers up to 1280 x 960 pixels of thermal detail🎥 Radiometric Video Recording
Capture full temperature data in every frame for advanced analysis📈 Real-Time Temperature Graphing
View temperature fluctuations instantly while scanning💾 Auto Image Sequence Capture
For time-based and trigger-based monitoring🖥️ Fluke Connect™ Desktop Software
Create professional reports, overlay visible + thermal, tag assets, and track trends⚙️ MatLab® & LabVIEW® Compatible
Perfect for labs and custom industrial applications
🏗️ Built for Your Workday:
R&D labs
Substations & power lines
HVAC & mechanical maintenance
Quality assurance
Remote outdoor inspections
With its rugged ergonomic build, neck strap, and glare-minimizing rotating display, the TiX580 is engineered for all-day comfort and real-world environments.
📦 Included in the Box:
TiX580 Infrared Camera (Export Controlled)
Battery & Charger
Neck Strap & Hard Carry Case
USB Cable, HDMI Cable
Fluke Connect™ Software License
Quick Start Guide
✅ In Stock – Ships from USA
🔒 Note: Subject to U.S. Export Control Regulations
Specifications: Fluke TiX580 Infrared Camera
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Touchscreen display (capacitive) | 5.7 inch (14.4 cm) landscape 640 x 480 LCD |
| Rugged, ergonomic design | 240 ° rotatable (articulating) lens |
| Digital zoom | 2x, 4x, and 8x |
| Pre-calibrated Lenses | wide angle, 2x telephoto, 4x telephoto and 25 micron/macro |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 1000 °C (-4 °F to 1832 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Live line marker | Yes |
| *Best possible | |
| Wireless connectivity | |
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location. |
| Fluke Connect Instant Upload | Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect tool compatible | Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported. |
| Fluke Connect SmartView desktop software | Yes |
| IR-Fusion® technology | |
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Continuously variable |
| Picture-In-Picture (PIP) | 100%, 75%, 50%, 25% IR |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
| Standard lens | IFOV (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional 2x telephoto smart lens | IFOV | 0.33 mRad. D:S is 2145.1 |
| Field of view | 12 °H x 8.5 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional wide-angle smart lens | IFOV | 1.85 mRad, D:S is 525:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | |
| Smooth auto and manual scaling | |
| Touchscreen adjustable level/span | Yes. Span and level can be easily and quickly set by simply touching the screen |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage. |
| Image file formats | Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files |
| Memory review | Thumbnail and fullscreen review |
| Software | Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system |
| Export file formats with Fluke Connect software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes (5 images) |
| Advanced text annotation | Yes. Including standard shortcuts as well as user programmable options |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3) |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app |
| Auto capture (temperature and interval) | Yes |
| MATLAB® and LabVIEW® tool boxes | Integrate camera data, infrared video and images into these software platforms to support R&D analysis |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-29 |
| Drop | 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens |
| Size (H x W x L) | 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in) |
| Weight (battery included) | 1.54 kg (3.4 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
