Powerful, versatile loggers built for energy studies and advanced power quality analysis. Includes Fluke Connect® compatibility, automated reporting, and real-time data insights.

💡 Key Features:

• Measure voltage, current, harmonics, dips, swells, inrush currents

• Power directly from measured circuit

• Capture over 500 power parameters

• EN50160 Power Quality Health Summary (1738)

• Built-in WiFi, USB, and Bluetooth (1738)

• Fluke Connect® mobile/desktop integration

• Bright touchscreen display for on-site analysis

📦 What's in the Box:

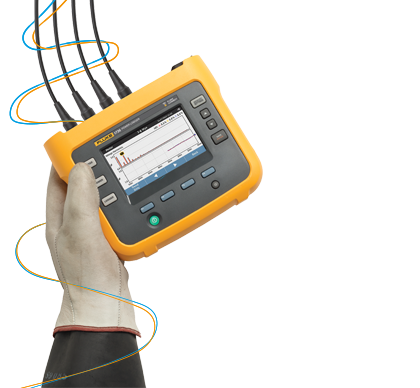

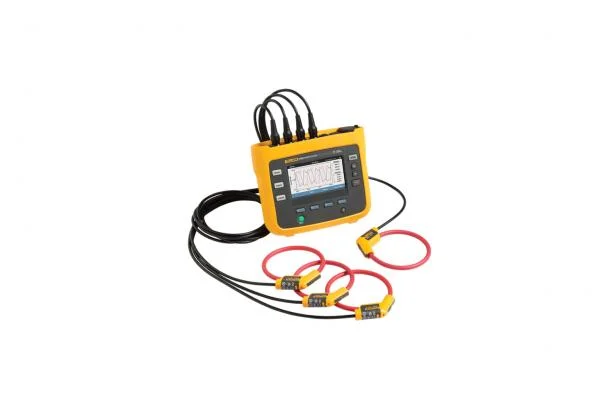

• Fluke 1738 Power Logger

• 4x Magnetic voltage probes

• 4x Flexible current probes

• Power supply

• Voltage test leads & alligator clips

• USB cables, WiFi/Bluetooth enabled

• Magnetic strap & soft case

• Fluke Energy Analyze Plus Software

• Calibration Certificate

• Color coding set

🧪 Technical Specs (Highlights):

• Voltage: 1000 V, ±0.2% accuracy

• Current (iFlex): up to 6000 A

• Sampling: 10.24 kHz, 16-bit

• Frequency: 42.5–69 Hz

• Memory: Logs up to 1 year

• Battery: 4–5.5 hours (Li-ion)

• Display: 4.3” color touchscreen

• Operating Temp: -10°C to +50°C

📈 Best For:

• Power Quality Studies

• Energy Consumption Analysis

• Troubleshooting Harmonics

• Load Studies and Cost Management

• Facility Electrical Health Reporting
